HADES-ICM
Mission information
Name
HADES-ICM
Alternate Names
SO-125
Satellite ID
TPAP-4475-7915-0965-4305
NORAD ID
63492
Website
https://www.amsat-ea.org/
Country of Origin

Spain

Status
Satellite alive
Operational

Satellite is in orbit and operational

HADES-ICM
Mission timeline
Launch Date
2025-03-15T06:43:00+00:00
Description

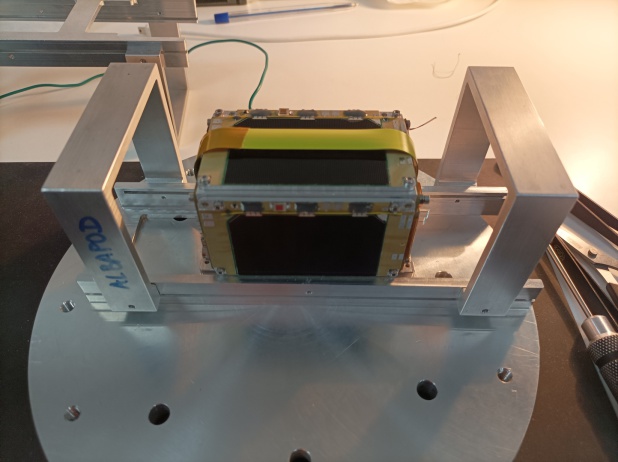

HADES-ICM 1.5 PQ satellite main mission is to act as a FM voice repeater. It can also repeat FSK derived modes like FT-4 and FT-8.

As there is a small empty space available, it will be used to carry an experiment by Smart IR/Graphene Engineering Innovation Centre, GEIC University of Manchester (UK) consisting in a very low power active radiator to be tested on space conditions.

HADES-ICM will offer licensed radio-amateur around the world the opportunity to relay FM voice and AX.25 / APRS 300 / 1200 bps communications. FSK derived transmissions and modes like FT-4 and FT-8 are also supported. As an improvement from previous missions, maximum power is now 0.25W when battery is charged (the amplifier uses battery energy), allowing easier QSOs with handheld antennas like Arrow or Elk and less sensitive receivers. The satellite will also transmit telemetry with its status and CW messages. This all will be achieved by implementing a SDR based repeater. The FM / FSK repeater will be available all time and opened by squelch level without the need of a subtone.

Mode U - FSK2k4 - Telemetry
Malfunctioning
Type
Transmitter
Downlink Mode
FSK
Downlink Frequency
436.666 MHz
Baud
2400
IARU Coordination
IARU Coordinated
Mode V/U APRS 1k2
Malfunctioning
Type
Transceiver
Downlink Mode
AFSK
Downlink Frequency
436.666 MHz
Baud
1200
Uplink Mode
AFSK
Uplink Frequency
145.875 MHz
IARU Coordination
IARU Coordinated
Mode V/U - FSK200 Transceiver
Malfunctioning
Type
Transceiver
Downlink Mode
FSK
Downlink Frequency
436.666 MHz
Baud
200
Uplink Mode
FSK
Uplink Frequency
145.875 MHz
IARU Coordination
IARU Coordinated
Mode U - FM Vocoder
Malfunctioning
Type
Transmitter
Downlink Mode
FM
Downlink Frequency
436.666 MHz
IARU Coordination
IARU Coordinated
Mode V/U - FM Transceiver
Malfunctioning
Type
Transceiver
Downlink Mode
FM
Downlink Frequency
436.666 MHz
Uplink Mode
FM
Uplink Frequency
145.875 MHz
IARU Coordination
IARU Coordinated
Mode V/U APRS 2k4
Malfunctioning
Type
Transceiver
Downlink Mode
AFSK
Downlink Frequency
436.666 MHz
Baud
2400
Uplink Mode
AFSK
Uplink Frequency
145.875 MHz
IARU Coordination
IARU Coordinated
Mode U - CW Beacon
Type
Transmitter
Downlink Mode
CW
Downlink Frequency
436.666 MHz
Downlink Drifted
436.666 MHz
IARU Coordination
IARU Coordinated
Mode U - FSK 200
Type
Transmitter
Service
Amateur
Downlink Mode
FSK
Downlink Frequency
436.666 MHz
Downlink Drifted
436.665 MHz
Baud
200
IARU Coordination
IARU Coordinated
Mode U - TLM Sideband replay
Type
Transmitter
Service
Amateur
Downlink Mode
BPSK
Downlink Frequency
436.666 MHz
Downlink Drifted
436.665 MHz
Baud
1200
Unconfirmed
Yes
Most Recent Observers (last 24h)
Observer Latest Data
K8DP-EN62vt 2025-07-14 03:13:39 UTC
Data Frames Decoded - 30 Days
There is no decoded data for this satellite in the last 30 days.
Decoder: HADES-ICM Telemetry
Script Name
hadesicm
Decoder Fields
Click here
Orbital Elements
Latest Two-Line Element (TLE)
TLE Source
Space-Track.org
TLE Updated
2025-07-13 17:04:24 UTC
TLE Set
1 63492U 25052BN  25194.25490349  .00021254  00000-0  87451-3 0  9997
2 63492 97.4281 88.0188 0009595 254.2281 105.7898 15.24120570 18387
